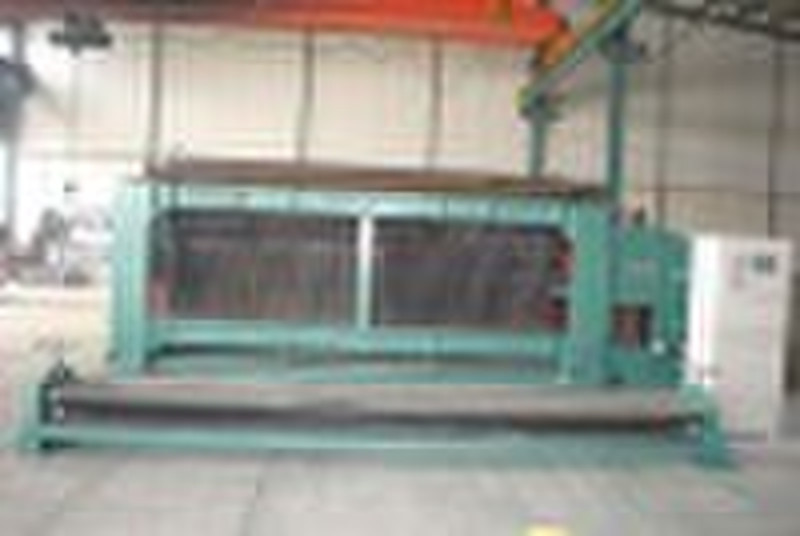

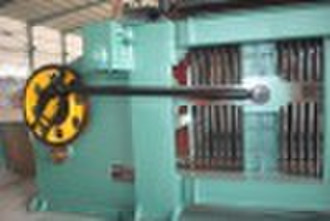

Gabion Mesh Machine Line

1) Mesh sizes: a) 60 x 80mm , 60 x 80mm and 120 x 150mm c) 80 x 100mm, 80 x 100 and 80 x 120mm e) 80 x 100mm and 160 x 180mm f) 100 x 120mm, 100 x 120mm and 100 x 140mm h) 50 x 70mm, 50 x 70mm and 100 x 140mm j) 120 x 150mm, 180 x 200mm and more 2) Max. netting width: 4300mm 3) Max. galvanized wire diameter: 3-4mm 4) Max PVC wire diameter: 4.1-5.1mm 5) Power: 22kW 6) Size: 7200 x 1400 x 2400mm 7) Weight: 15MT 8) Theoretic output: 165 - 500 m/hr 9) Automatic stop system (option): when the coiling finished or wire broken, the machine will stop automatically 10) Infrared ray safety protection system (option) 11) Automatic oil system
